Ignition Wires

Ignition Wires

Click image to zoom

Features & Specifications
  • High voltage, high temperature 8MM silicone ignition wire with an OE style high-performance suppression conductor core for guaranteed compatibility with all H-D ignition systems.
  • Heavy walled extreme duty crystal clear FEP Fluoropolymer outer insulation eliminates the need for grounding wires and insures no interference with late model computer modules.

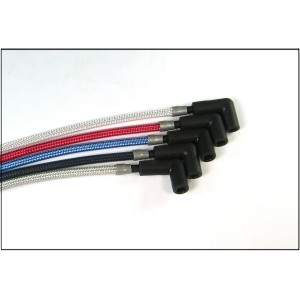

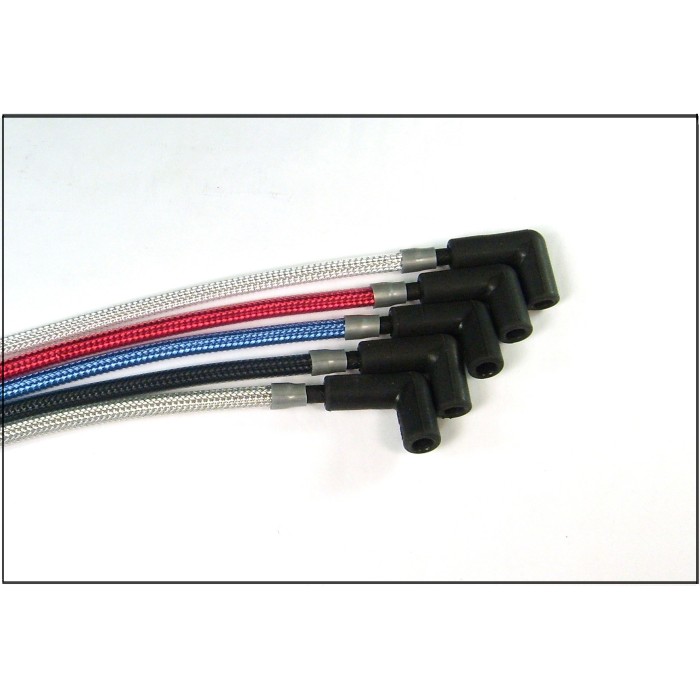

  • Braid available in Sterling Chromite II, metallic red, blue, black, and Polished Stainless.  *Gold ignition wires have been discontinued.
  • Posi-lock spring clip terminals and silicone boots ensure maximum performance and clean spark delivery.
  • Made in the USA.
  • NOTE:  Due to EMI (electromagnetic interference), our ignition wires can only be produced with the maximum length of 24" of braiding. The clear diaelectric coating will contain the EMI without a grounding strap up to that length. Wires longer than 24" will have the braiding removed from one end to prevent any possible issues related to EMI.
  • NOTE: Due to the length, applications for 09-10 Touring bikes (part number #3045) has 8.5 inches of high performance black silicone core wire on the coil end of each wire. Contact Customer Service at 585-381-8380 if you want to alter the length or position of that material.
  • Click here to view all OE stock fitments


Show:
Sort By:
Model
Coil End Boot
Color
Length Wire 1
Length Wire 2
Spark Plug Boot
Price

3023B

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Blue
17"
6 1/2"
90 Female

$64.95

3023C

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Chrome
17"
6 1/2"
90 Female

$64.95

3023K

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Black
17"
6 1/2"
90 Female

$64.95

3023S

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Polished
17"
6 1/2"
90 Female

$64.95

3023T

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Red
17"
6 1/2"
90 Female

$64.95

3024B

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Blue
20"
7 1/4"
90 Female

$64.95

3024C

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Chrome
20"
7 1/4"
90 Female

$64.95

3024K

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Black
20"
7 1/4"
90 Female

$64.95

3024S

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Polished
20"
7 1/4"
90 Female

$64.95

3024T

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male
Red
20"
7 1/4"
90 Female

$64.95

3028B

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male/ 90 Male
Blue
20"
6 5/8"
180 Female

$64.95

3028C

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male/ 90 Male
Chrome
20"
6 5/8"
180 Female

$64.95

3028K

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male/ 90 Male
Black
20"
6 5/8"
180 Female

$64.95

3028S

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male/ 90 Male
Polished
20"
6 5/8"
180 Female

$64.95

3028T

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

180 Male/ 90 Male
Red
20"
6 5/8"
180 Female

$64.95

3030B

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

90 Male
Blue
9 3/4"
9 3/4"
90 Female

$64.95

3030C

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

90 Male
Chrome
9 3/4"
9 3/4"
90 Female

$64.95

3030K

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

90 Male
Black
9 3/4"
9 3/4"
90 Female

$64.95

3030S

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

90 Male
Polished
9 3/4"
9 3/4"
90 Female

$64.95

3030T

High voltage, high temperature 8MM silicone ignition wire with an OE style high-performa..

90 Male
Red
9 3/4"
9 3/4"
90 Female

$64.95
